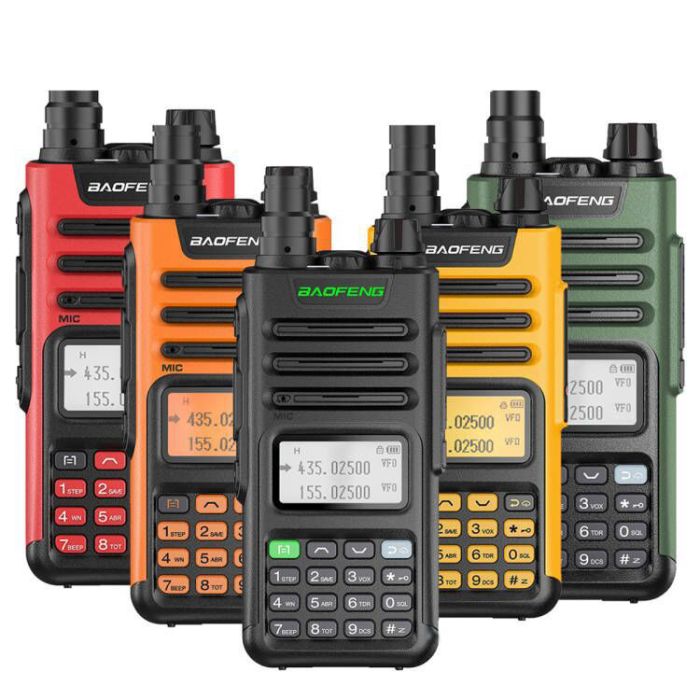

Baofeng UV-13 PRO Walkie Talkie 10W 8800mAh Type-C USB Dual Band Transceiver Ham Radio Up of UV-10R UV-5R Amateur CB Radio

$49.95
In stock
SKU
865054710547


★Upgrades from Baofeng UV-5R

999 Memory Channel; CTCSS/DCS; VOX Mode for Hands-Free; A/B band independent operation; Dual band; dual display; dual standby Auto Keypad Lock.

★USB Type-C Charging

USB charging is a trend for mobile devices as it has low requirements for power sources and
places. The UV-13 PRO is USB Type-C rechargeable, for which you can easily charge it like a phone in your car, with a power bank or laptop. Portable for your go-kit.

★Dual Watch & Sync Switchable

For users who only want to monitor one channel but would like to see both the channel name and frequency information on the display, the Sync function will be very helpful.

★UHF VHF Scanner + 3 Scanning Modes

Channel Scanning: Scan through your preset scanning list.

Frequency Range Scanning: Set a frequency range in the menu and it will scan precisely within that range, even only 1MHz apart.

CTCSS/DCS Tone Scanning: Scan all CTCSS/DCS tones of the current frequency.

★PC & Manual Programmable

Apart from programming the radio via computer software, users can also use the keypad to program most settings in the menu, for example, adding/deleting a memory channel, adding/removing a channel from the scanning list, adjusting VOX/squelch/power save levels, etc.



Product Description:

All of our items are Brand New

Model

UV-13 PRO

Dual band /dual display / dual standby

A/B band independent operation(UV UU VV)

999 groups channels storage

Shortcut menu operation mode

Memory channels scan

Time/ Carrier / Search Operation

Emergency Alarm

Indicator and flashlight Flashing Together

Time-out Timer (TOT)

15-600/Stepping 15

Squelch Level(SQL)

0-9 Grade

PTT & ANIID

ON OFF/0-9;A-F

Voice companding

CTCSS/DCS

High/Low TX power selectable

Busy channel lock-out(BCLO)

DTMF ST function

DT+ANI/ANI-ST/DT-ST/OFF

Dual PTT

Yes



Wide/Narrow Band(25kHz/12.5kHz)

Yes



VOX function

Yes

OFF/1-10

1750HZ Tone

Yes



Busy lockout function

Yes



Scanning function

Yes



Monitor function

Yes



Time-out Timer (TOT) function

Yes



LCD display

Yes



Dual display

Yes



Dual Standby

Yes



Battery voltage display function

Yes



Channel name display and editing functions

Yes



Signal strength indicator

Yes



Keypad lock function

Yes



Built-in Led torch

Yes



FM radio

Yes

65-108MHZ(Reception)

Emergency alarm function

Yes



Low battery alarm

Yes



Power saving function

Yes



High/Low TX power selectable

Yes

10W

ROGER SET

Yes

FULL/MGS

Chinese and English voice prompt

Yes



Wire clone function

Yes



PC software programmable

Yes



General SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral SpecificationsGeneral Specifications

Frequency stability

±2.5ppm

Frequency Step

2.5/5/6.25/10/12.5/20/25KHz

Antenna Impedance

50ohm

Working temperature

-20~+50°C

Rated Voltage

7.4V DC±10%

Output power

<= 10W

Battery type

Li-ion battery

Battery capacity

8800mAh

Headphone jack type

2 Pin Kenwood Plug

Antenna Type

SMA-(Male)

Mode Of Operation

Simplex Or Semi-duplex

Weight

130g(approximate)

Dimension(LXWXH)

269*55.8*35mm

Transmitter

Type Of Modulation

16køF3E / 11køF3E

Max frequency deviation

< 5kHz(Wide)/< 2.5kHz(Narrow)

Emissioncurrent

<= 1.5A(5W)

CTCSS / DCS

0.7±0.1kHz(Wide)/0.4±0.1kHz(Narrow)

Reception

Sensitivity

-122dBm(12dB SINAD)

Audio Power

1W

Intermediation Distortion

<10%

Inter modulation

>=65Db/>=60dB

Spurious response

65dB

Adjacent channel selectivity( wide/narrow)

<-65dB(Wide) <-60dB(Narrow)

Receiving Current

<=380mA

Features:

1) IPX4 life waterproof (Splash waterproof protection).

2) LCD display screen.

3) 10W high power

4) Up to 999 memory channels.

5) DTMF coding.

6) U/V full band transceiver.

7) Quick menu operation mode.

8) Computer program.

9) Wired copy function.

10) Emergency alarm call function.

11) Wide / narrow band selection.



Package include:

1 X Portable radio

1 X Antenna

1 X Li-ion battery pack

1 X Type-C USB Charger

1 X Belt clip

1 X The Sling

1 X User's manual
